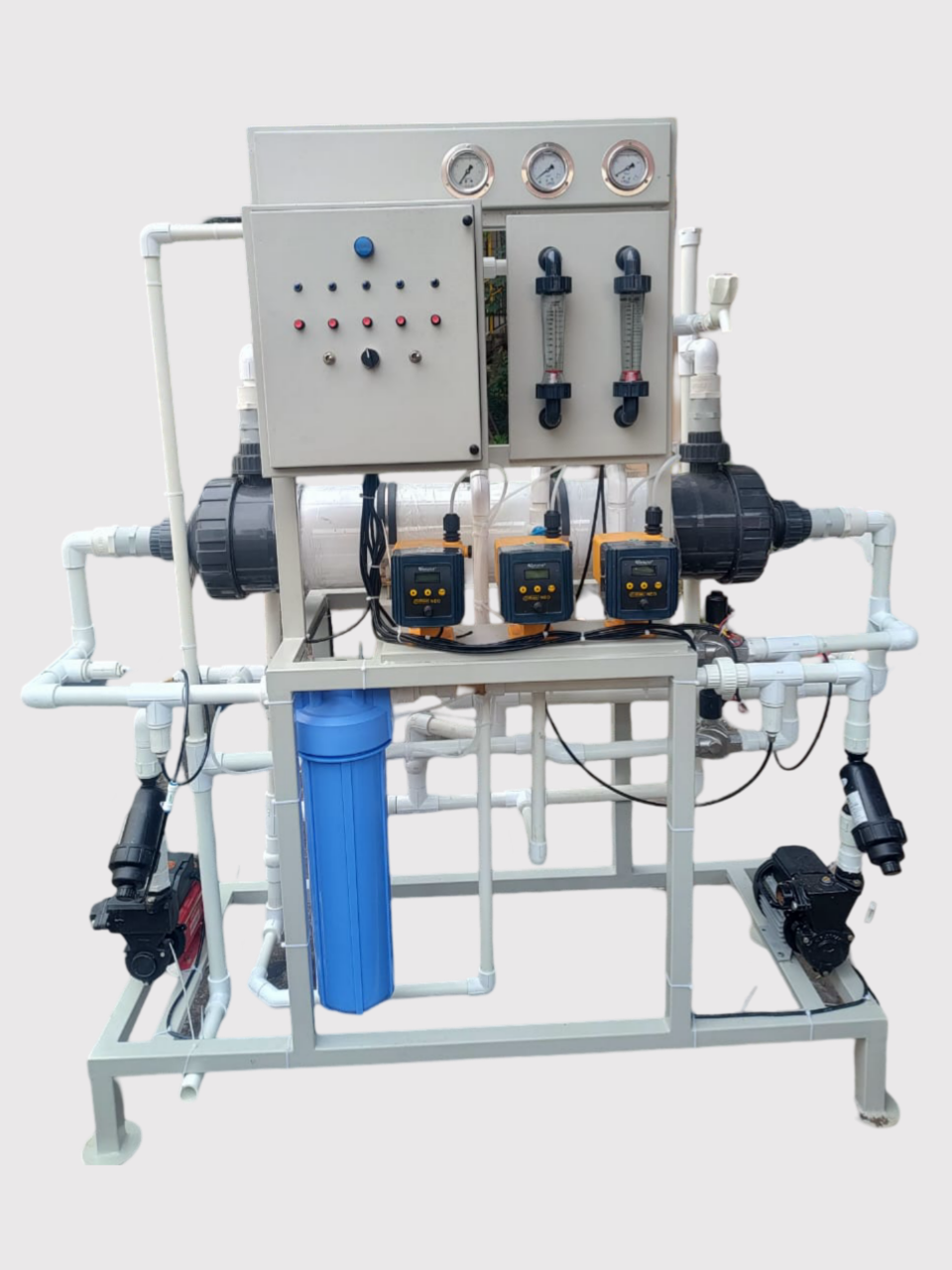

Ultrafiltration System (UF Plant System)

Ultra filtration is a unique pressure-driven physical separation process in which the water is passed through porous membranes with pore sizes in the range of 0.1 to 0.01 micron. The result is high pure water free from physical and biological contaminations. All components of the ultrafiltration system are securely mounted on a skid for easy transport and installation and equipped with necessary valves for efficient control and operation of the filtration process. Also it includes a user-friendly control panel for easy monitoring and management of system parameters.

Price Range:

₹ 3,11,900 - ₹ 7,67,250

Treated Water Quality: High purity with minimal contaminants
Treatment Technique: Membrane filtration
Treatment Capacity: Available in various capacities from 250 to 25,000 LPH
Water Source: Surface water, groundwater, or industrial effluent
Applicable Industry: Water treatment plants, food and beverage industry, pharmaceuticals
Installation Service: Provided
Automation Grade: Fully Automatic
Usage/Application: Drinking water treatment, industrial processes, wastewater recycling.

Features :
- High removal efficiency of bacteria and viruses
- Periodically backwashed for consistent performance
- Compact modular design for low-cost systems
- Fully automated control system
- Control panel with standard PLC mounted on the equipment frame.

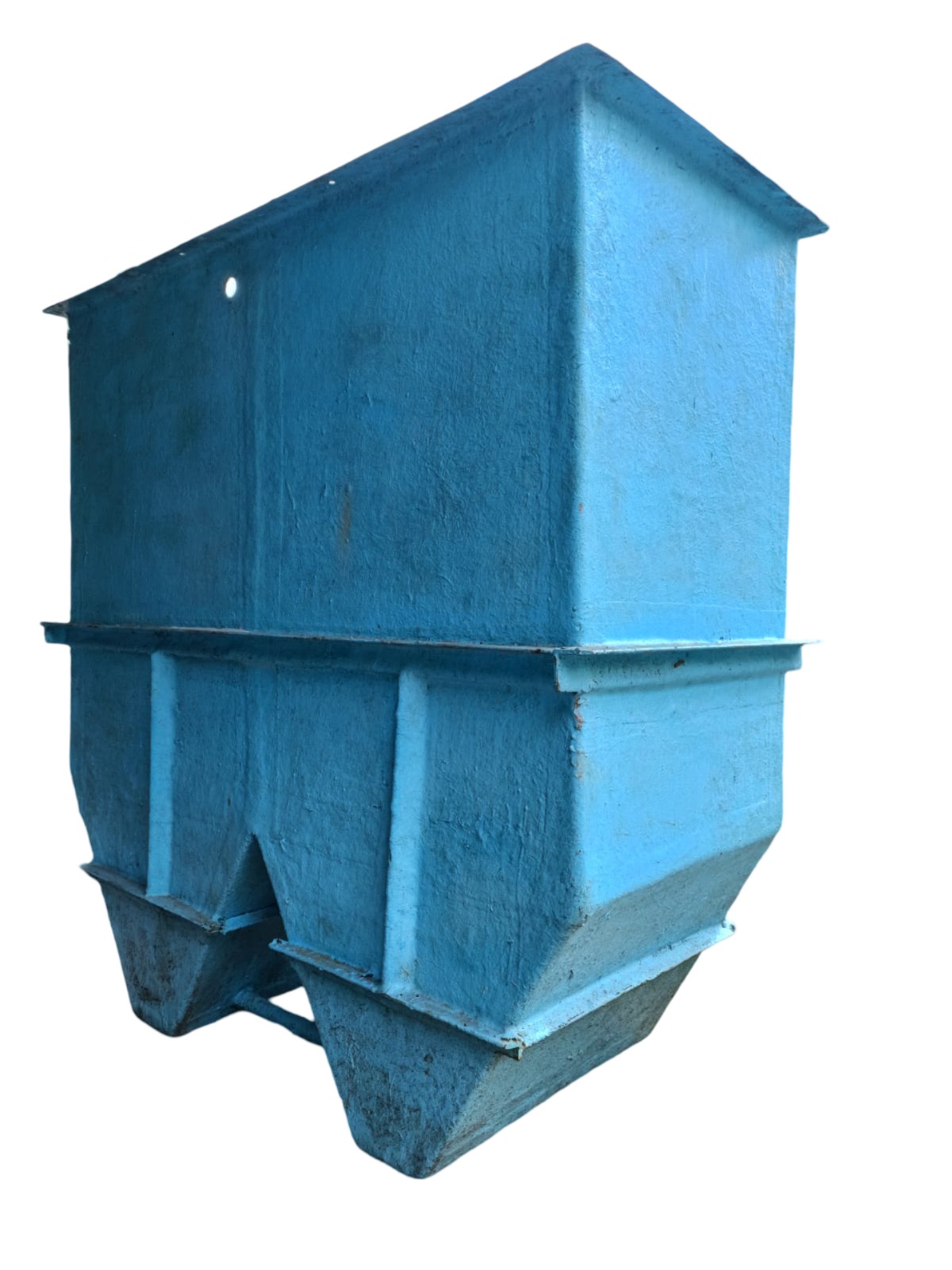

Dissolved Air Flotation (DAF)

Dissolved Air Flotation (DAF) is a water treatment process used to remove suspended solids, oils, and other contaminants. It works by dissolving air in water under pressure and then releasing it at atmospheric pressure in a flotation tank. As the pressure drops, tiny air bubbles form, attaching to particles and causing them to rise to the surface, where they can be skimmed off. This method is effective for treating wastewater in industries like food processing and oil extraction.

Price Range:

₹ 1,26,750 - ₹ 3,87,750

Treated Water Quality : 35- 40% reduction in BOD, 95% reduction in suspended solids/oils
Treatment Technique : Air saturation
Treatment Capacity : 10 m3/hr - 500 m3/hr
Water Source : Industrial Effluent
Applicable Industry : Oil refining Industry, Chemical Industry, Food Industry
Installation Service : Provided
Automation Grade : Fully Automatic
Usage/Application : free- floating and emulsified oil removal and TSS removal

Features :
Very compact modular construction
Easy operation
Low maintenance costs
Easy to expands to larger capacities

Specifications :
Material: FRP
Colour: Blue
Size: Customized

screen

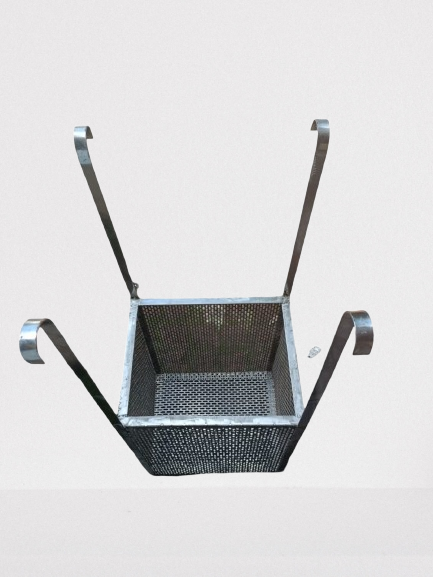

Basket Screen

Basket screens are essential for small treatment plants, offering simple yet effective pre-treatment by safeguarding downstream equipment from damage and enhancing further treatment processes. They can be easily raised and lowered for cleaning, making them ideal for deep structures. Available in various materials and designs, basket screens are versatile solutions for efficient pre-treatment in wastewater management.

Price Range:

₹ 7,000 - ₹ 13,800

Specifications:
Flow: 10-100 m³/hr
Opening of Screen: 5-20 mm
Installation Angle: 90°
Material: Stainless steel


Features:
- Customized design
- Robust, durable, and reliable
- Low maintenance cost
- Easy to install, operate, and maintain
